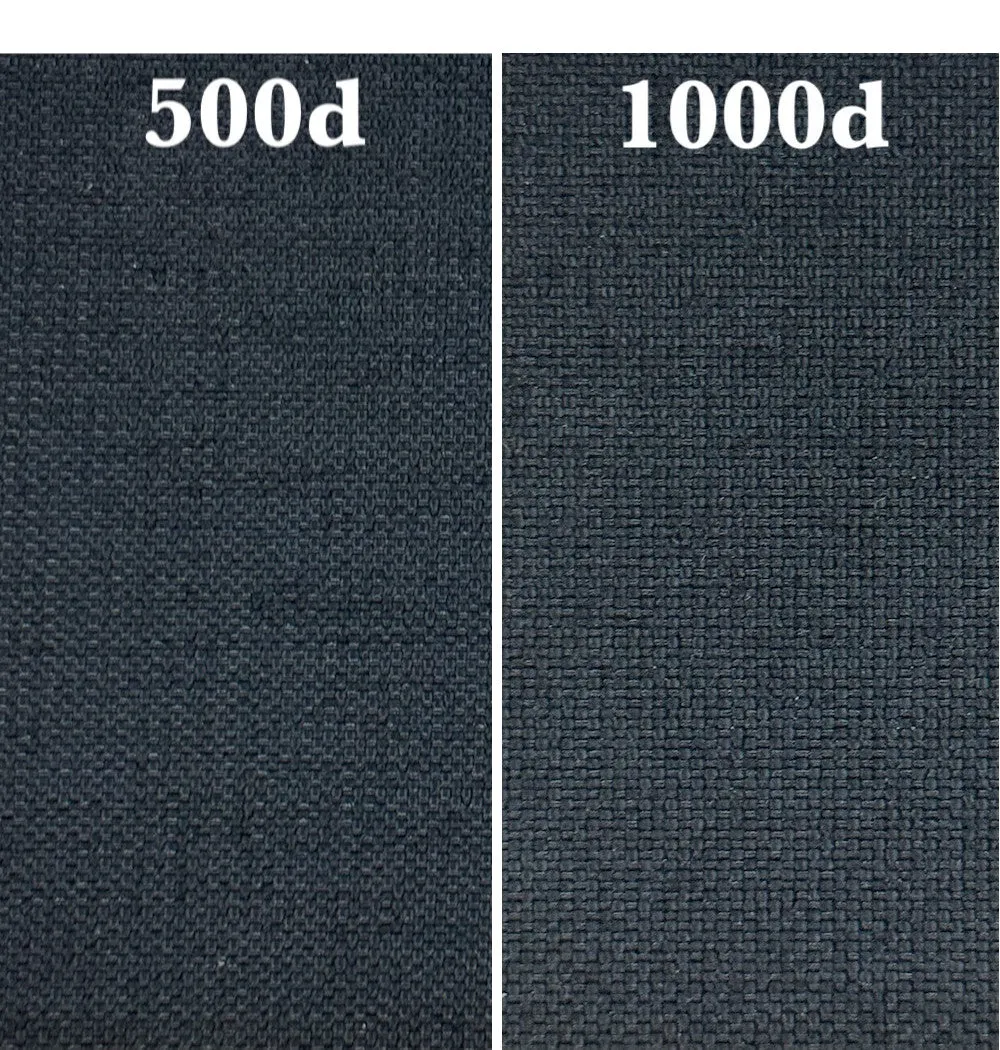

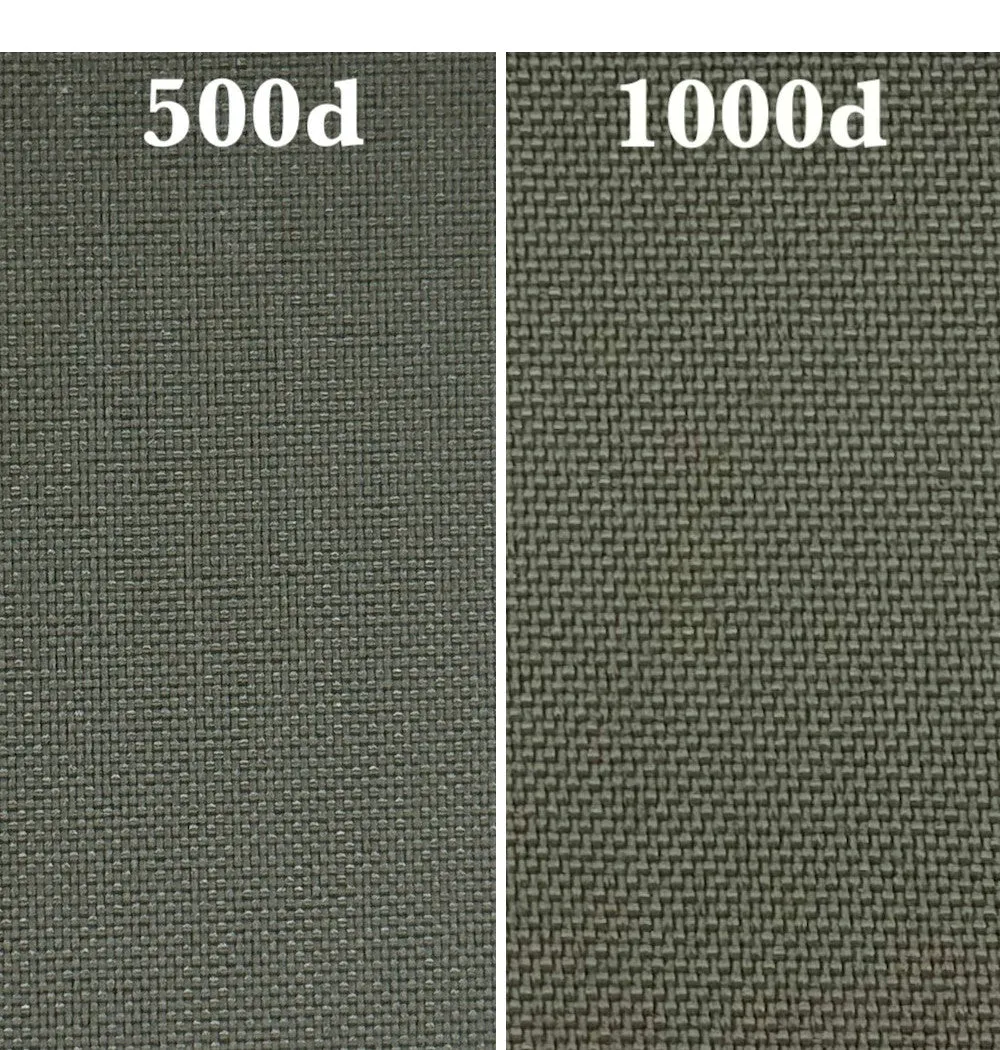

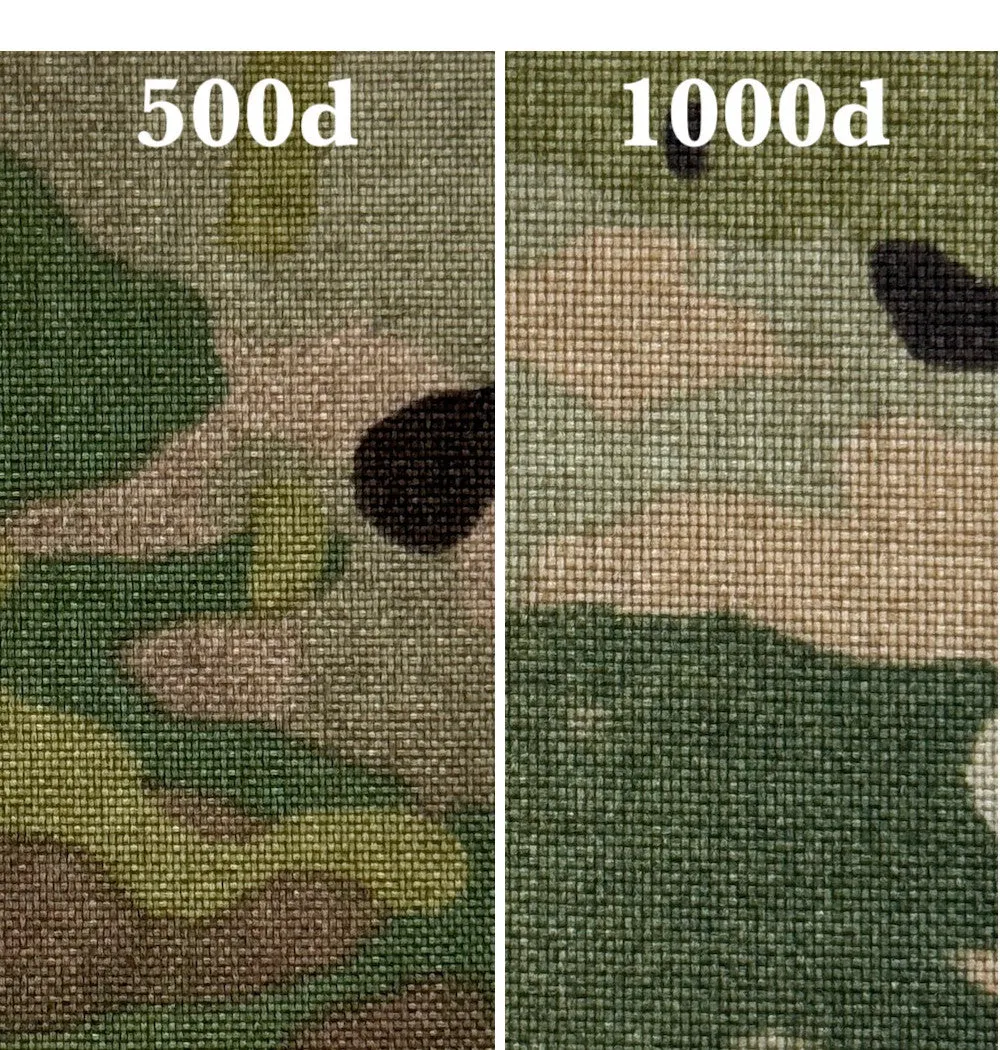

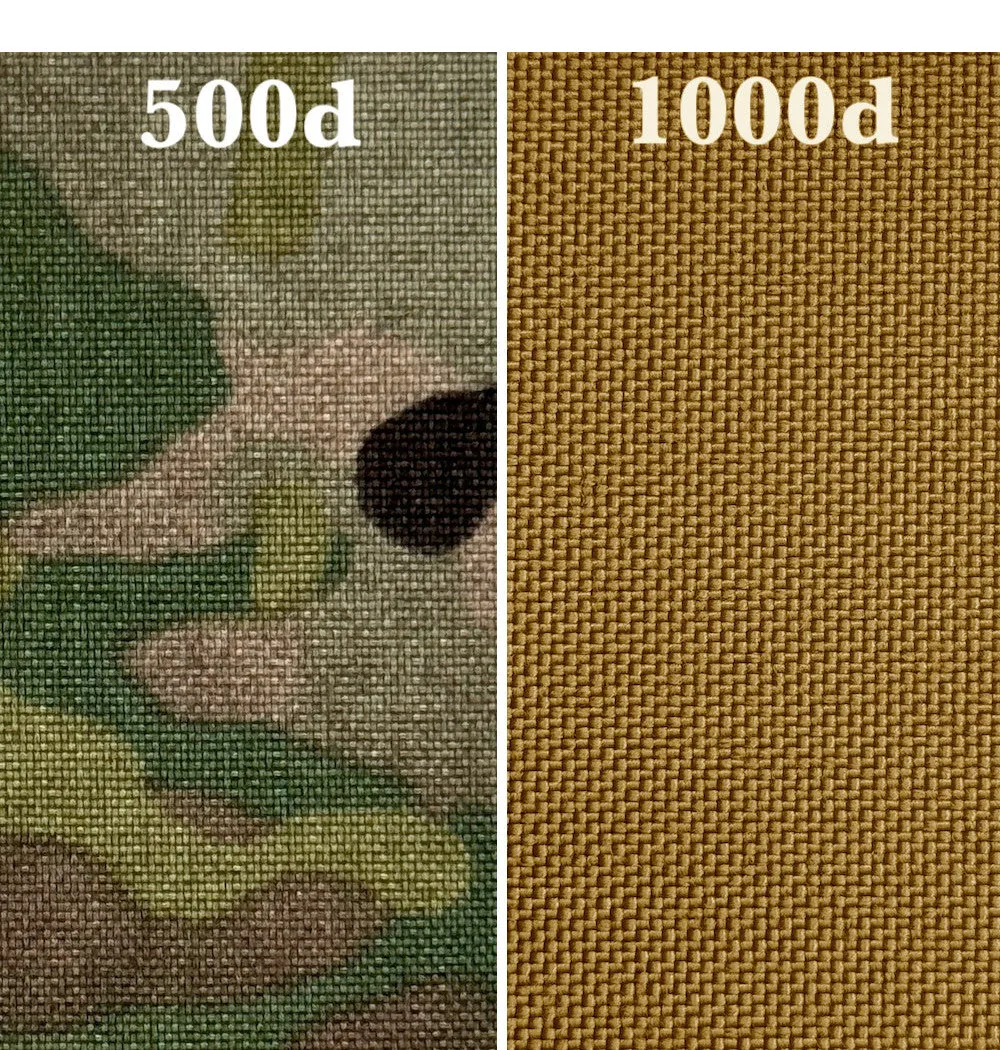

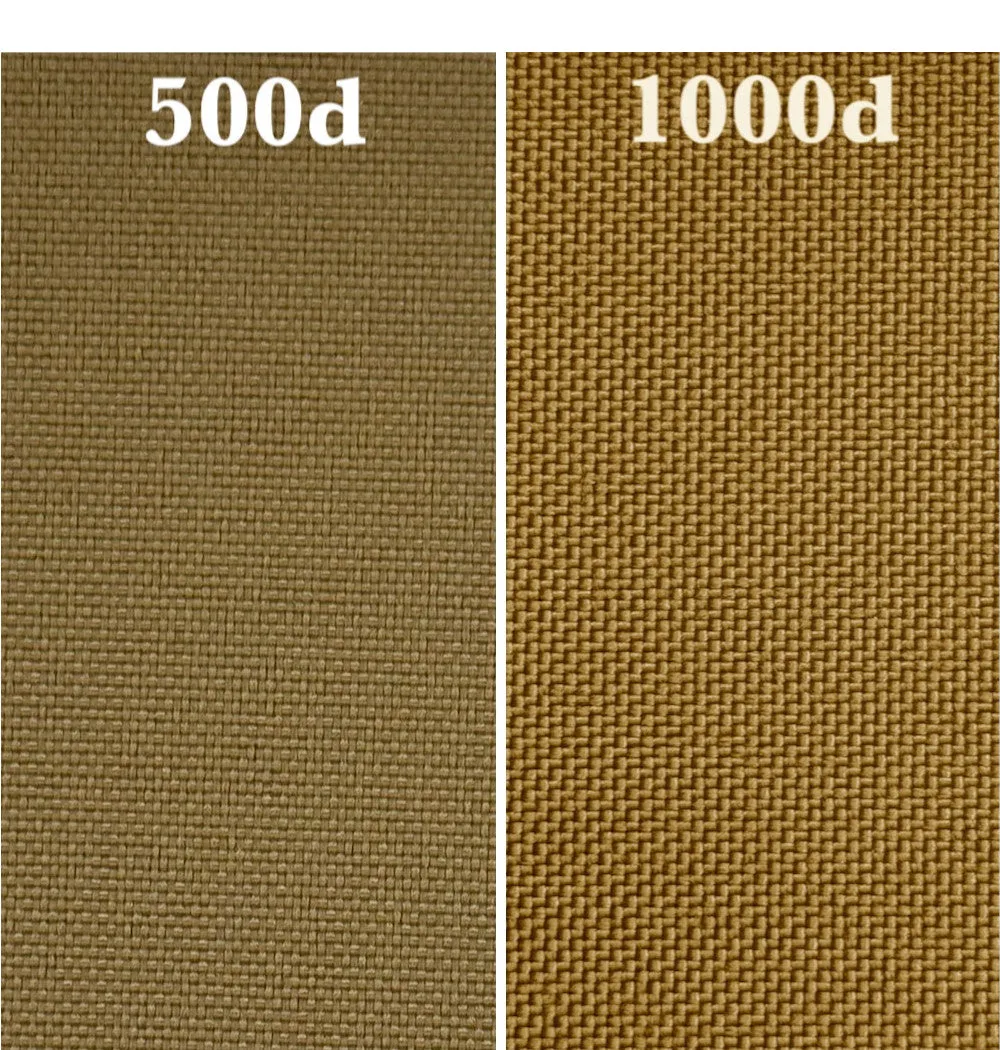

*** 500d laminated to 1000d ***

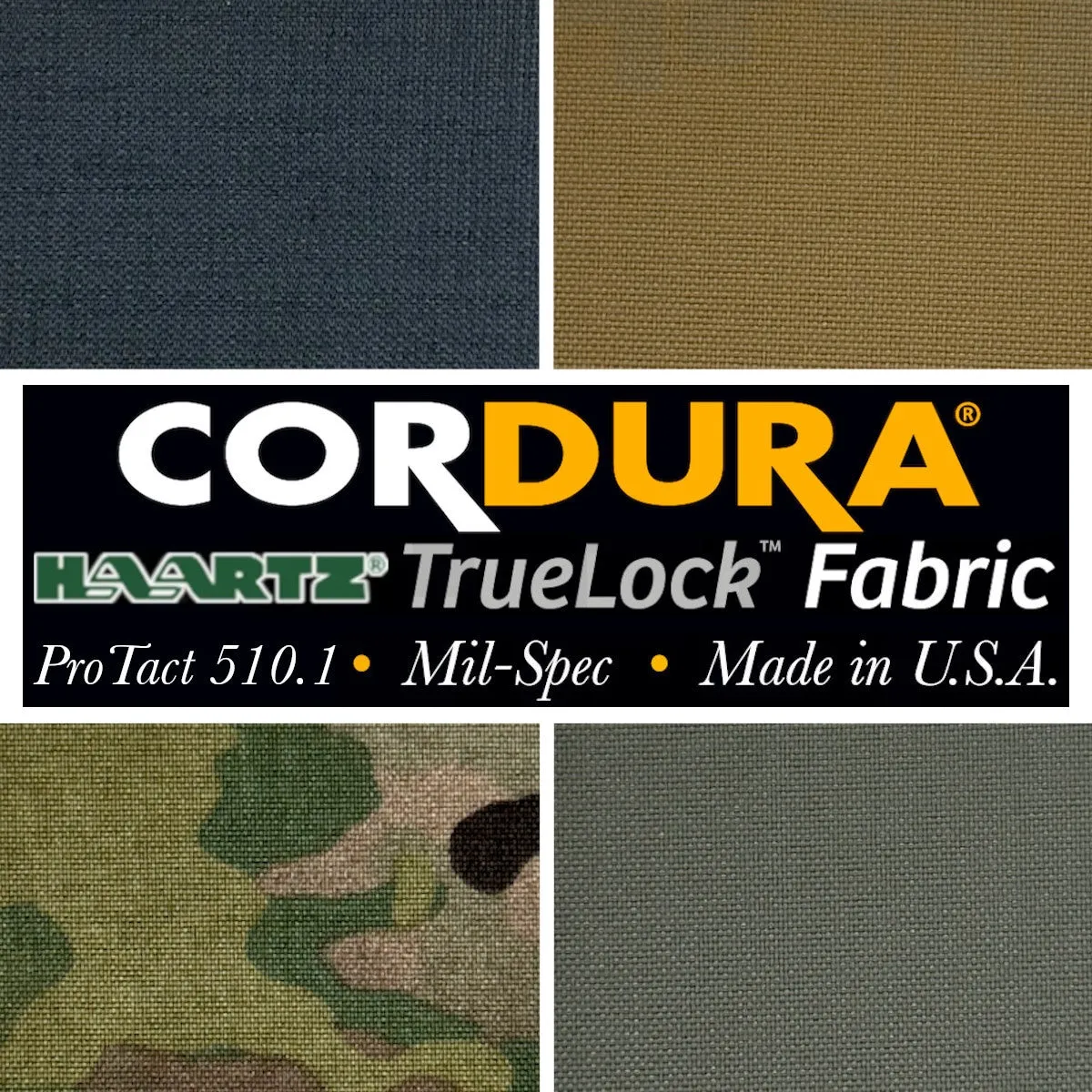

ProTact by Haartz™ is a line of technical laminates specifically developed to exceed the performance standards of coated fabrics used in military and tactical gear applications. Based upon their 100 years of coated fabric expertise, these products find application in load carrier laminates in vests, pouches, luggage, and other applications.
Durability
ProTact laminates have been developed with the most durable solution-dyed nylon fabrics available on the market today. Their advanced coating systems are also optimized for application-specific durability properties to ensure the longest possible lifespan in the most demanding environments.
Processibility
ProTact laminates have demonstrated easy cuttability via laser. Additionally, they can be sewn and welded with various methods.
| Weight | ASTM D751 | OSY | 19-23 | 21 |
| Abrasion Resistance | ASTM 3884 | Cycles | 700 min | Pass |
| Adhesion | ASTM D751 | LBF / 2 in | 10 min | 16.5 |
| Cold Resistance | ASTM D751 | P/F | Passes -40 Degrees C | Pass |
| Colorfastness to Crocking (dry/wet) | AATCC 8 | Rating | 3 min / 3 min | 5 / 5 |
| Flex | ASTM D2097 | P/F | 10,000 cycles / min | Pass |
| Hydrostatic | ASTM D751 | PSI | 50 min | 72.5 |
| Tensile (warp/fill) | ASTM D751 | LBF | 675 min / 675 min | 952 / 953 |
| Tongue Tear (warp/fill) | ASTM D2261 | LBF | 35 min / 30 min | 71 / 75 |
| Trap Tear (warp/fill) | ASTM D5733 | LBF | 90 min / 90 min | 194 / 162 |
This product will always be rolled. Extra handling fee is already included in shipping cost.
Solution Dyed
Made in the USA
IR and Berry Compliant
Uses Mil-spec fabric, but due to lamination, no longer meets any specific spec.
